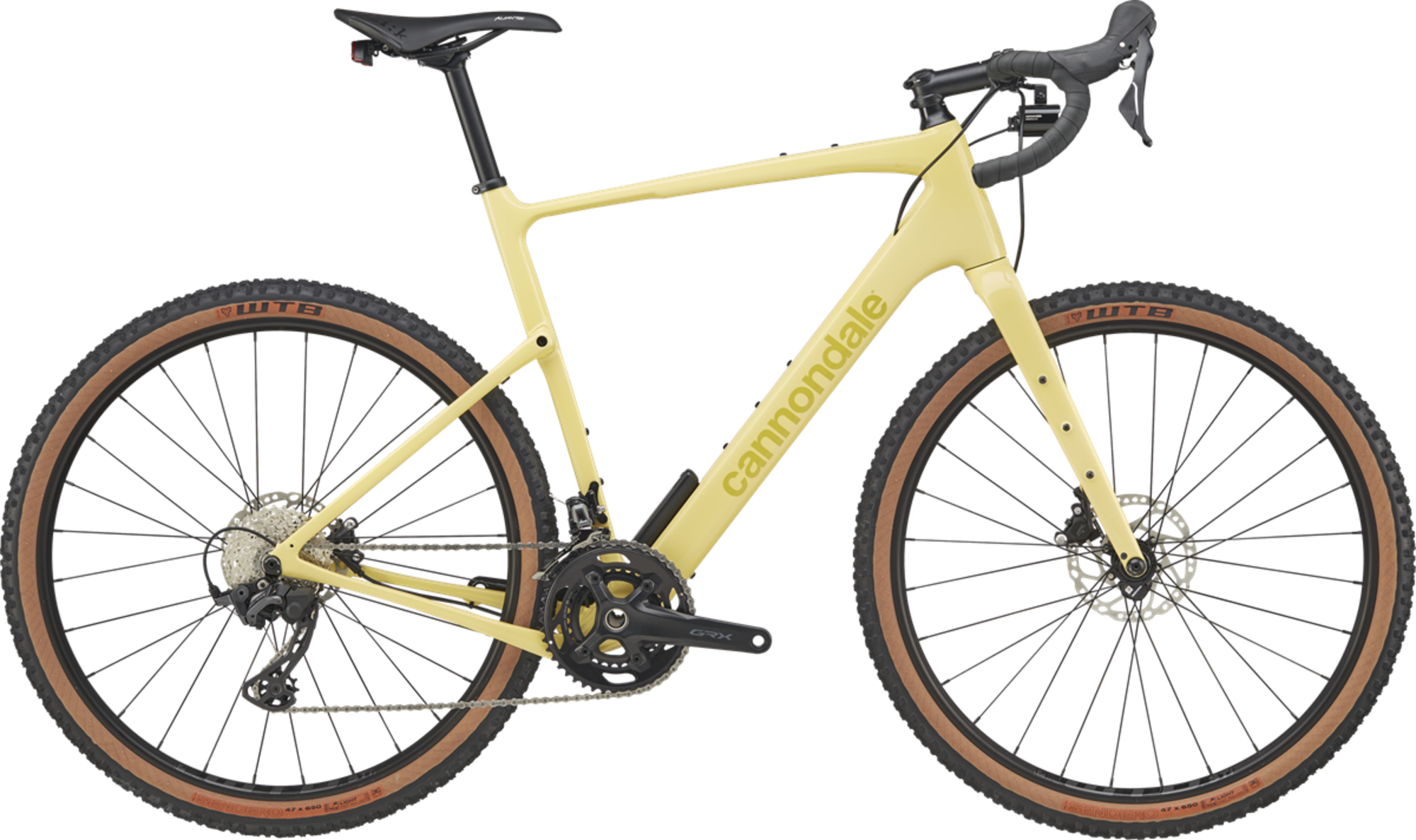

Cannondale Topstone Carbon 3 L 700c

Cannondale Topstone Carbon 3 L 700c
  • Color: Butter
$3,324.99
Color: Butter
Size: Medium
Wheel Size: 700c
Please select options Unavailable

Details

Nothing is impassable
The best gravel bike for anything from dirt roads to singletrack trails. With the grip and comfort of the Kingpin suspension, nothing is off-limits.

Where it thrives
Gravel and Dirt Roads, Rough Pavement, Trails

What it's built for
Gravel riding, back road exploring, bike packing and off-road adventures

Highlights
- Lightweight Topstone Carbon frameset with Kingpin suspension / SmartSense Light equipped
- Shimano GRX 820/600 12-speed gravel group
- Shimano GRX 600/400 hydraulic brakes
- WTB ST i23 TCS rims with 700x45c Maxxis Riddler tires

Sizes:
SizeX-SmallSmallMediumLargeX-Large
Wheel Size 700c 700c 700c 700c 700c
A - Seat Tube Length (cm) 41 45.8 50.5 55.3 59
B - Top Tube Horizontal (cm) 53.3 54.4 55.7 57.2 58.7
C - Top Tube Actual (CM) 50.3 51.6 53.2 55 56.7
D - Head Tube Angle 70.0° 71.2° 71.2° 71.2° 71.2°
E - Seat Tube Angle Actual 73.1° 73.1° 73.1° 73.1° 73.1°
E1 - Seat Tube Angle Effective 71.4° 71.6° 71.8° 71.9° 72.1°
F - Standover (cm) 70.4 74.5 78.5 82.3 85.7
G - Head Tube Length (cm) 10.5 12.3 15 17.7 20.5
H - Wheelbase (cm) 101 101.3 102.9 104.4 106.1
I - Front Center (cm) 60.1 60.3 61.7 63.3 64.9
J - Chain Stay Length (cm) 42 42 42 42 42
K - Bottom Bracket Drop (cm) 7.4 6.9 6.7 6.7 6.4
L - Bottom Bracket Height (cm) 27.8 28.3 28.5 28.5 28.8
M - Fork Rake (cm) 5.5 5.5 5.5 5.5 5.5
N - Trail (cm) 6.9 6.2 6.2 6.2 6.2
0 - Stack (cm) 53.4 55.1 57.4 60 62.4
P - Reach (cm) 37.1 37.7 38.3 39 39.7
Sizes:
SIZERider Height (In)
X-Small 4'10" to 5'5"
Small 5'3" to 5'9"
Medium 5'7" to 6'1"
Large 5'10" to 6'4"
X-Large 6'0" to 6'8"

Specs

Pedals Sold Separately
Fork Topstone Carbon, 1-1/8" to 1.5" steerer, 55mm OutFront offset, flat mount disc, internal routing, 12x100 thru-axle, triple bottle/gear mounts, fender mounts
Hubs (F) Formula cartridge bearing, 12x100mm centerlock / (R) Formula cartridge bearing, 12x142mm centerlock
Rims WTB ST i23 TCS, 700c, 28h, tubeless ready
Stem Cannondale 3, 6061 Alloy, 31.8, 7°
Chain Shimano HG M7100, 12-speed
Frame Topstone Carbon, Kingpin suspension system, SmartSense equipped, Proportional Response construction, 12x142mm thru-axle, 27.2 dropper post ready, BSA 68mm threaded BB, DirectLine internal cable routing, removable fender bridge, multiple gear/bottle mounts
Tires WTB Riddler TCS Light, 700x45c, tubeless ready
Brakes Shimano GRX 400 hydraulic disc, 160/160mm RT64 rotors
Saddle Fizik Aliante R7
Spokes Stainless Steel, 14g
Headset Integrated, 1-1/8" - 1.5"
Crankset Shimano GRX 610, 46/30
Seatpost Cannondale 3 SmartSense, 6061 Alloy, 27.2x350mm
Shifters Shimano GRX 600, 12-speed
Handlebars Cannondale 3, butted 6061 Alloy, 16 deg flare drop
Tape/Grips Fizik Solocush Soft, 3mm
Bottom Bracket Shimano BSA 68
Rear Derailleur Shimano GRX 820, Shadow RD+
Front Derailleur Shimano GRX 820, braze-on
Cassette/Freewheel Shimano HG R7100, 11-34, 12-speed

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Butter / Medium / 700c 884603979310 C15303U20MD 210000039713
